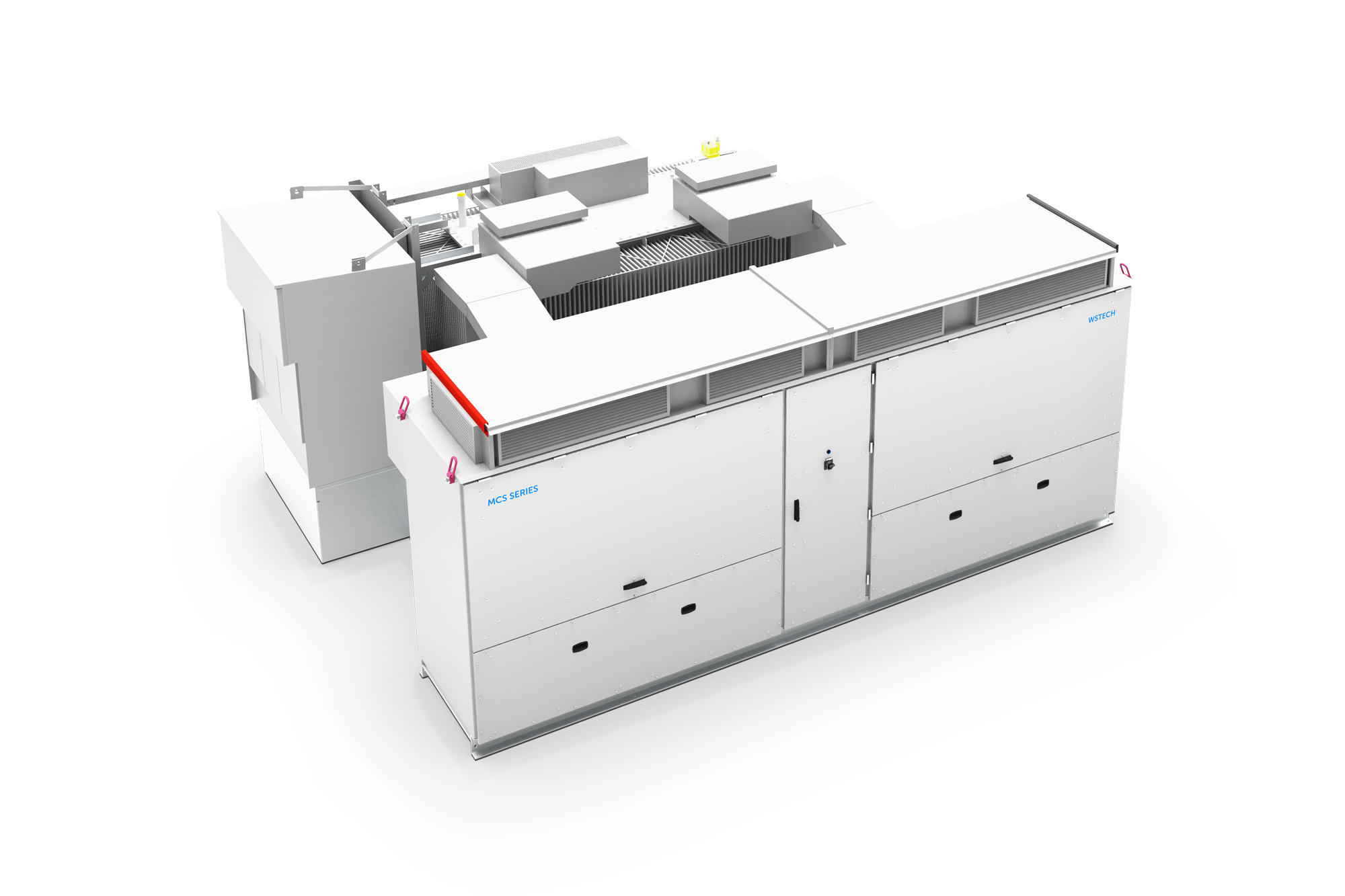

MCS Inverter Energy Storage
OUTDOOR ENERGY STORAGE HYBRID INVERTER SERIES, WITH POWERFUL
SOLUTION FOR LARGE-SCALE ESS INSTALLATIONS.
IN PROCESS
TESTED
VDE-AR-N 4110
CERTIFIED
VDE-AR-N 4120
CERTIFIED
IEC
CERTIFIED
IP55
IN PROCESS
Features MCS GENERATION:

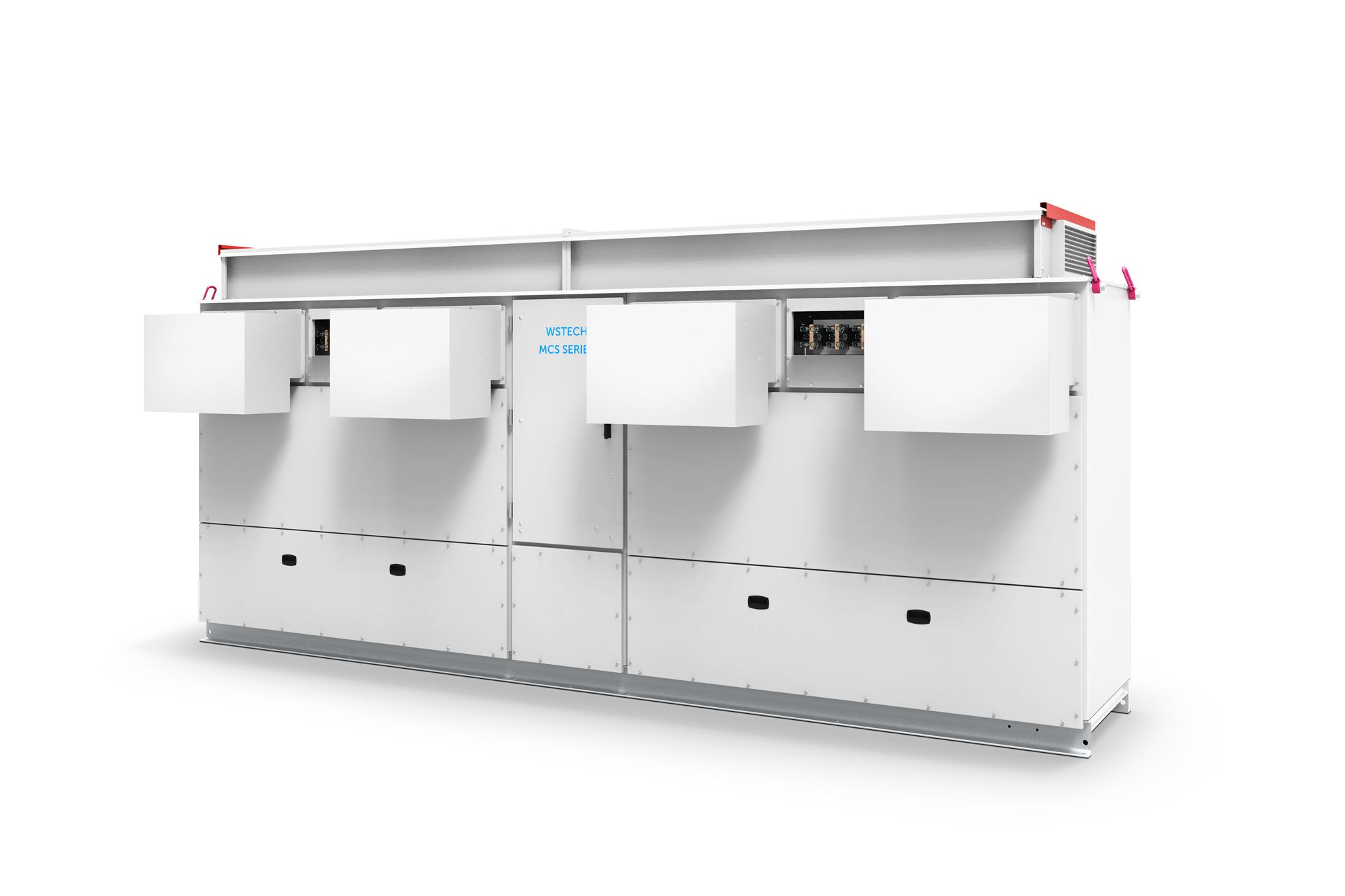

DC-split version with up to 4 independent controllable power units and 4x 1875kVA
Up to 4x 140kA short circuit level DC inputs for high capacity / long duration Energy Storage Systems
Corrosion class C4H or C5M
Possibility for an extra internal auxiliary transformer available up to 80A
Integrated common mode filter for battery protection for seperated version

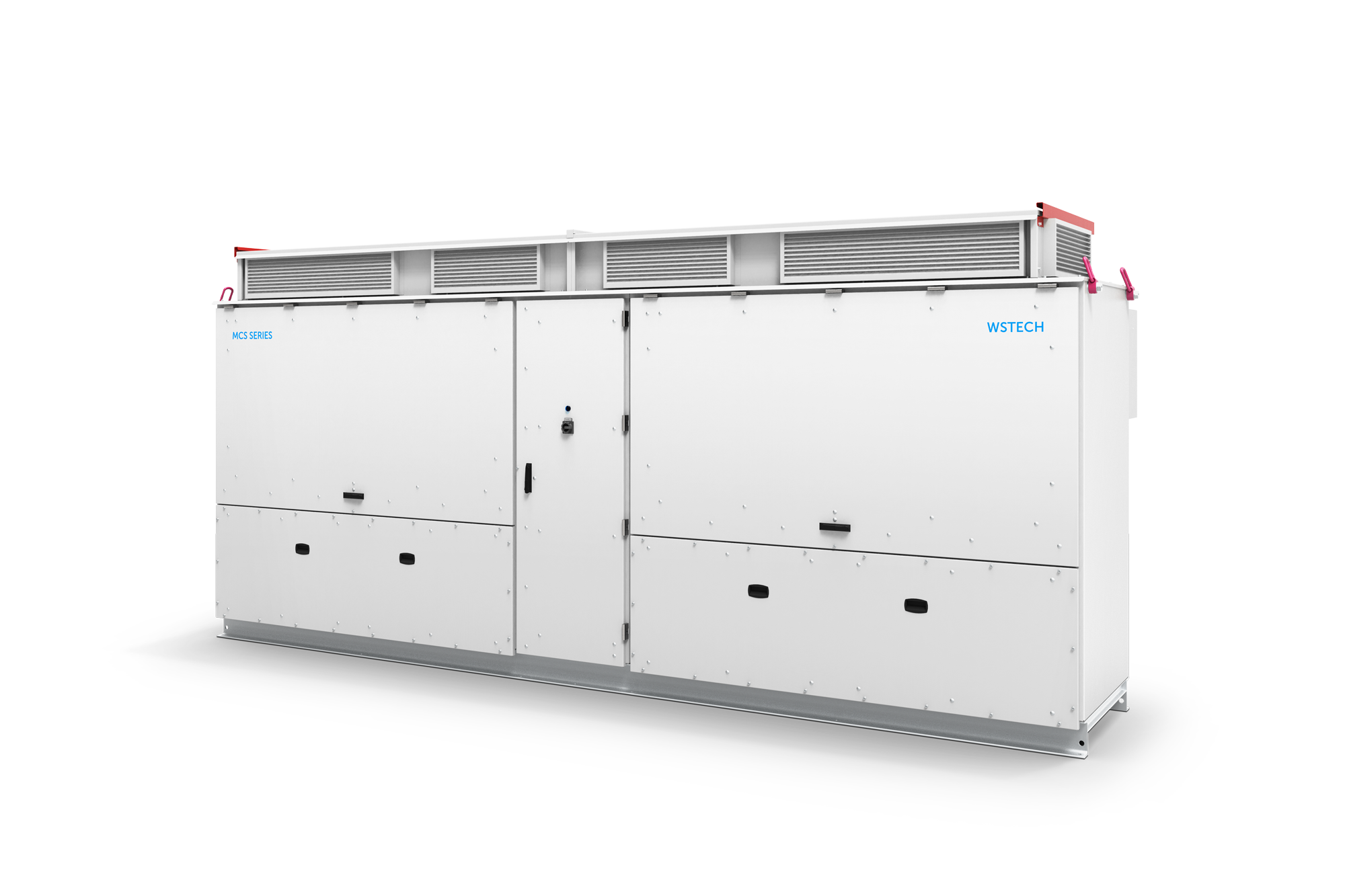

Optimized AC connections, combining up 3750kVA per connection
Black start and island grid / grid forming function
Additional interface for transformer cooling
Noise reduced design for urban / residential environment
Small physical foot print with high power density
Optimized for 20 foot container transport
110% power boost for ESS applications
MCS MAIN FEATURES AND OPTIONS:
Fast response times below 100ms and high communication speed
Air cooled system, no cooling liquids required
Hermetically closed cabinet for the compartment with sensitive components (no dust, sand or rain inside)
Ambient conditions -40°C up to 60°C, up to 5000m altitude (derating)
Supply of up to 100% leading/lagging reactive power
High efficiency
Quicklinks
Datasheets
MCS INVERTER SERIES – MULTIPLE APPLICATIONS IN ENERGY STORAGE SYSTEMS:
Frequency and voltage regulation
power systems
Optimized self-consumption of PV / renewable energy
